Your Roof, Unstoppable Steel

Forging a new path, Apex Panel is a uniquely capable, unmistakably beautiful metal roof panel. Four modern style ribs combine with low-profile striations for just the right look. For projects where you want a look similar to standing seam, but with the price point and faster installation of through fastener panels.

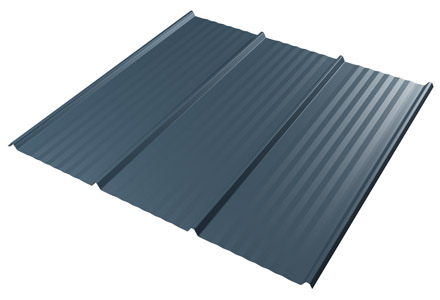

Apex Panel Product Apex P001 Panel Side Angle

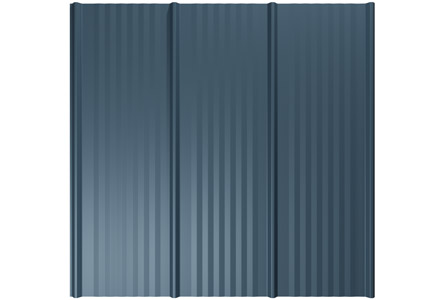

Apex Panel Product Apex P002 Panel Overhead

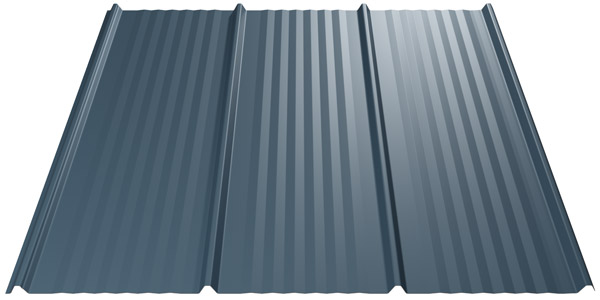

Apex Panel Product Apex P003 Panel Front Angle

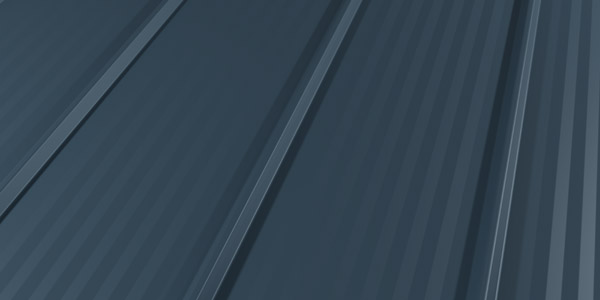

Apex Panel Product Apex P004 Assembly Side Angle

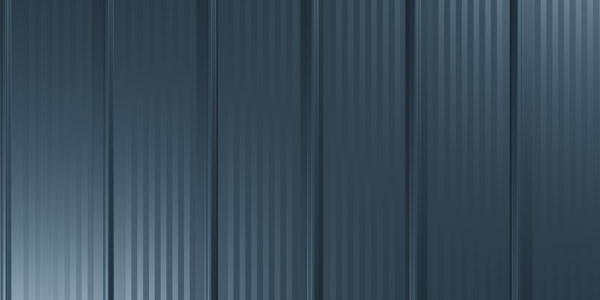

Apex Panel Product Apex P005 Assembly Overhead

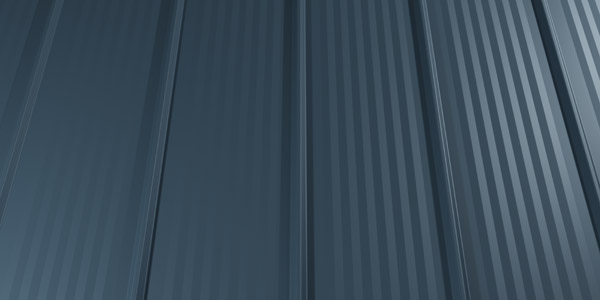

Apex Panel Product Apex P006 Assembly Front Angle

Design & Size

We manufacture Apex Panel custom cut to the inch per your specifications. Any length is available from 3′ up to 45′. Apex design features four 3/4″ high ribs, spaced 12″ on center.

Size

36" Width (Coverage)
Cut to Inch From 3'–45'

Gauge & Weight

29 Gauge - 0.70 lb / Sq Ft
26 Gauge - 0.85 Lb / Sq Ft

Warranty & Finish

Painted Apex Panel carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

An integrated anti-siphon groove on panel laps allows Apex Panel to be installed on roofs as low as 2.5:12. Strong 3/4″ modern-quad ribs enable installation over solid deck and open frame applications.

Apex Panel is at home on residential applications, but functions well as a light commercial panel as well.

Minimum Slope

2.5:12

Substrate

Solid Deck
Open Frame

Intent

Residential
Light Commercial

Colors
Pure White
Ivory
Stone
Clay
Sierra Tan
Brown
Light Gray
Charcoal
Bronze
Black
Bright Red
Barn Red
Burgundy
Hawaiian Blue
Gallery Blue
Forest Green
HD Black (Premium)
HD Forest Green (Premium)
HD Charcoal (Premium)
HD Barn Red (Premium)
HD Bronze (Premium)
HD Copper Penny (Metallic Premium)
Galvalume (Non-Painted)

Painted Apex Panel finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Hi-Reflective

Painted Apex Panel finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
