7/8″ Corrugated
A commercial take on corrugated - 7/8" high ribs.
Industrial/Commercial Corrugated Panel

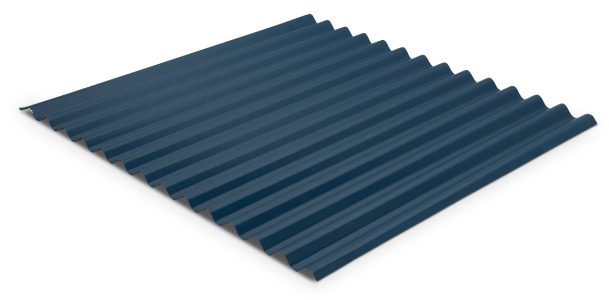

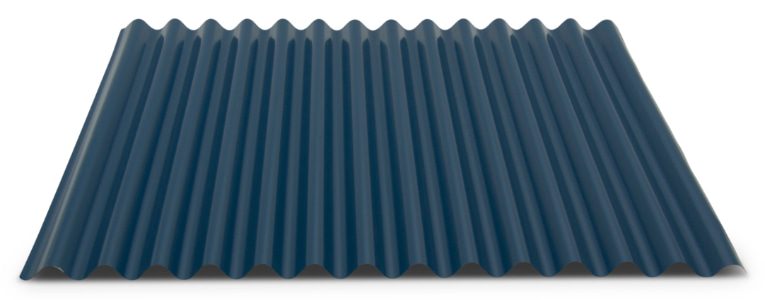

7/8″ Corrugated is our tallest and strongest corrugated panel. Deep 7/8″ ribs are closely spaced, providing a rugged look and the strength for industrial and commercial applications. These higher ribs also allow installation on slopes as low as 1:12.
Design & Size

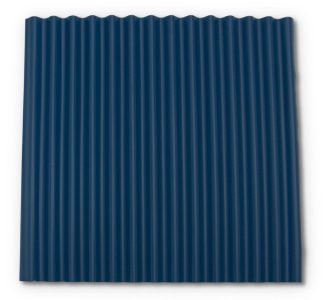

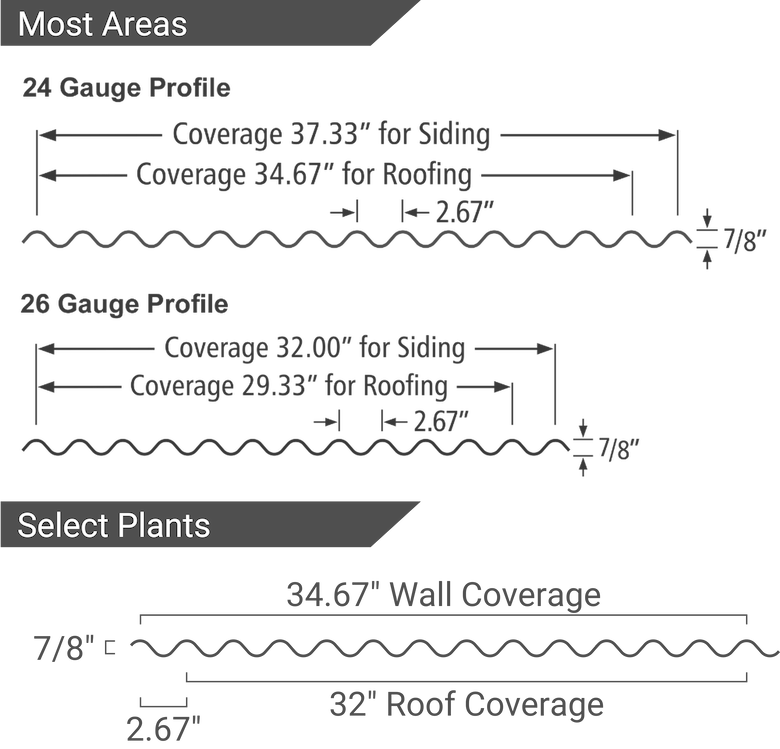

We provide 7/8″ Corrugated cut to the inch per specification. 7/8″ Corrugated design features 7/8″ high ribs, spaced 2.67″ on center. On roofs, ribs are lapped 2 ribs, while on walls, ribs are lapped 1 rib.
Size
Roof: 32", Walls: 34.67" (Varies By Location)
Cut to Inch From 3'-45'
Gauge & Weight
26 Gauge - 1.02 lb / Sq Ft
24 Gauge - 1.33 Lb / Sq Ft
Warranty & Finish
7/8″ Corrugated is available in both SMP painted, Kynar 500® painted, and non-painted Galvalume. Unpainted Galvalume is popular for industrial/commercial roofs, while the painted options are popular for roofs and walls of industrial, commercial and general purpose buildings.
Finish & Warranty
Painted: 40 Years
Galvalume: 25 Years
Reflectivity
25-70%
Hi-Reflective
Purpose & Use
7/8″ Corrugated has the strength to span open framing up to 5′ apart – allowing incredible strength and saving on material costs.

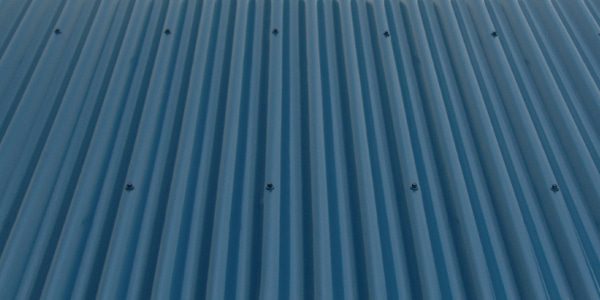

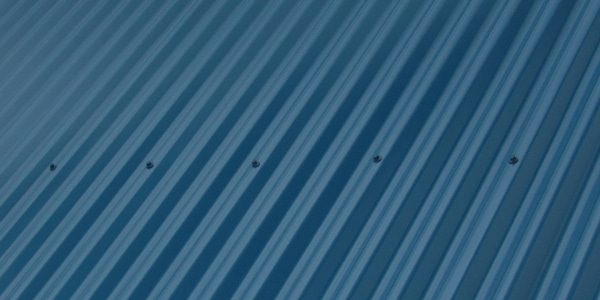

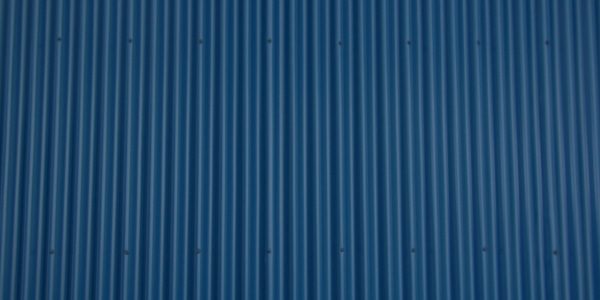

Common uses for 7/8″ Corrugated include horizontal and vertical oriented walls as well as use as a high-strength roof panel. Painted, Galvalume, and specialty finishes make 7/8″ Corrugated a look all your own.
A high tensile steel core allows 7/8″ Corrugated to handle roofs and walls in the high winds of Florida.
Minimum Slope
1:12
Substrate
Solid Deck
Open Frame
Florida Approvals
Florida Building Code
Intent
Commercial
Industrial
Colors
Polar White (26ga)
White (26ga)
Light Brown (26ga)
Mocha Tan (26ga)
Ash Grey (26ga)
Charcoal Gray (26ga)
Burnished Slate (26ga)
Black (26ga)
Brown (26ga)
Patriot Red (26ga)
Red #24 (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Ocean Blue (26ga)
Patina Green (26ga)
Forest Green (26ga)
Galvalume (Non-Painted)
Snowdrift White W81 (24ga)
Linen White 81 (24ga)
Sandstone W51 (24ga)
Parchment W74 (24ga)
Taupe 74 (24ga)
Khaki 88 (24ga)
Mansard Brown 133 (24ga)
Medium Bronze H4 (24ga)
Weathered Copper W150 (24ga)
Dark Bronze 50 (24ga)
Ash Grey 25 (24ga)
Old Town Grey W25 (24ga)
Old Zinc Grey W29 (24ga)
Slate Grey W38 (24ga)
Matte Black 106 (24ga)
Aged Copper 65 (24ga)
Patina Green W58 (24ga)
Hemlock Green M7 (24ga)
Classic Green 66 (24ga)
Felt Green W66 (24ga)
Patriot Red 73 (24ga)
Terra Cotta W72 (24ga)
Colonial Red W75 (24ga)
Brandywine P8 (24ga)
River Teal 59 (24ga)
Metallic Silver K7 (24ga Premium)
Champagne Metallic 168 (24ga Premium)
Mistique Plus W31 (24ga Premium)
Copper Penny W92 (24ga Premium)
Antique Patina M1 (24ga Premium)
Tahoe Blue W71 (24ga)
Ocean Blue 35 (24ga)
Regal Blue W35 (24ga)
Rustic Steel W45 (SP)Painted 7/8″ Corrugated® finishes are Hi-Reflective, reflecting 25-70% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 10999.1
Min 24ga., roof, over steel purlins
Min 24ga., roof, over steel purlins
FL# 9482.1
Min 24ga., wall, over steel purlins
Min 24ga., wall, over steel purlins
Hi-Reflective
Painted 7/8″ Corrugated finishes are Hi-Reflective, reflecting 25-70% of the sun’s rays.
