5V-Crimp

Vintage and reborn for a new era.

Request Pricing

Contemporary Style

5V-Crimp is a classic barn panel reborn for a new generation. Offers five traditional “V” ribs and is built to be a long-lasting option for residential and agriculture roofs.

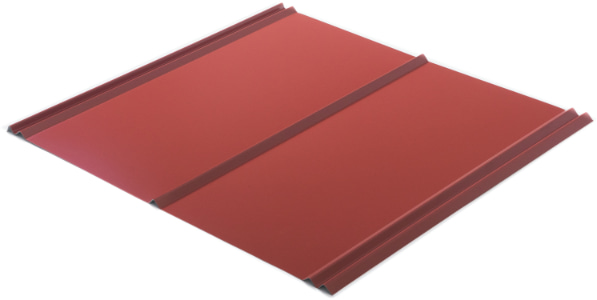

5v Crimp Product Bbm 5v P001 Panel Side Angle

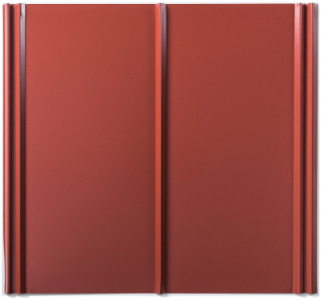

5v Crimp Product Bbm 5v P002 Panel Overhead

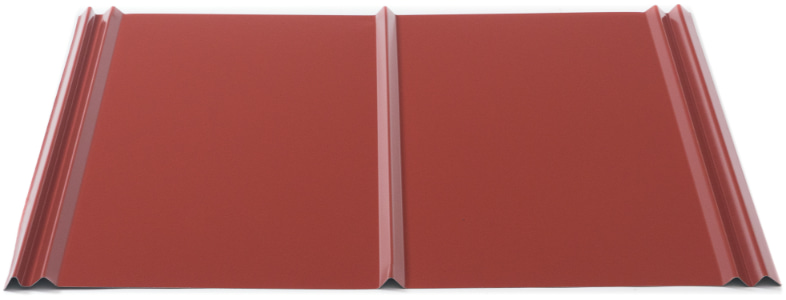

5v Crimp Product Bbm 5v P003 Panel Front Angle

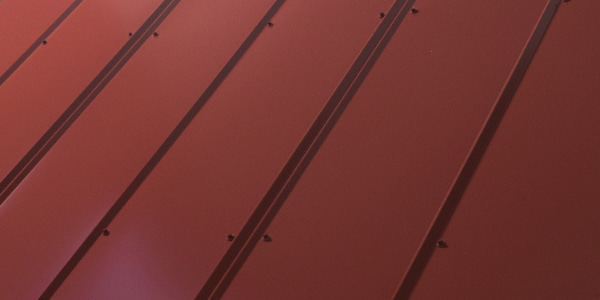

5v Crimp Product Bbm 5v P004 Assembly Side Angle

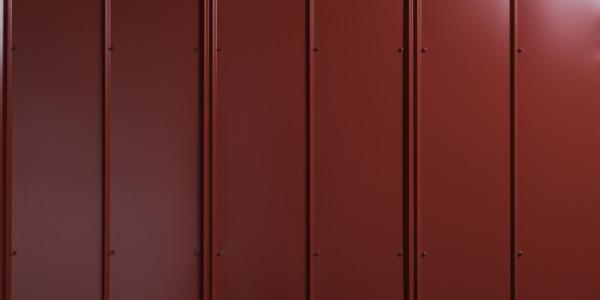

5v Crimp Product Bbm 5v P005 Assembly Overhead

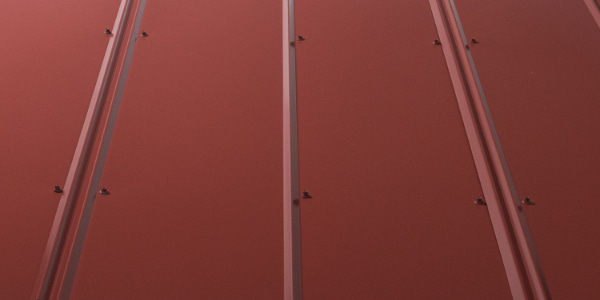

5v Crimp Product Bbm 5v P006 Assembly Front Angle

Design & Size

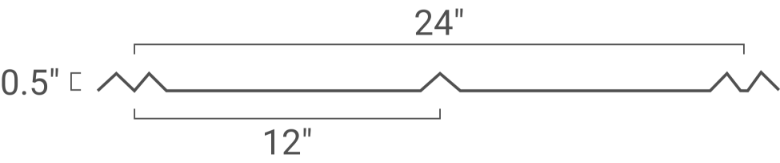

No need to lap multiple panels – we manufacture 5V-Crimp to the inch per your specifications. Any length is available from 3′ up to 45′ – though for handling 30′ maximum is recommended. 5V-Crimp’s design features five 1/2″ high ribs, two on each side and one in the middle.

Size

24" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

29 Gauge - 0.62 lb / Sq Ft
26 Gauge - 0.78 Lb / Sq Ft

Warranty & Finish

Painted 5V-Crimp carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat. Oil Canning (waviness on flat pan) is a natural occurrence in flat pan metal panels and is not a cause for panel rejection.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

5V-Crimp is primarily installed on barns and homes in the South and Southeast, combining vintage formed “V” crimp ribs with the strength and versatility of steel. The thin seams and flat portions of the panel provide a look similar to traditional standing seam.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Agricultural

Colors
Pure White
Ivory
Stone
Clay
Sierra Tan
Brown
Light Gray
Charcoal
Bronze
Black
Bright Red
Barn Red
Burgundy
Hawaiian Blue
Gallery Blue
Forest Green
HD Black (Premium)
HD Forest Green (Premium)
HD Charcoal (Premium)
HD Barn Red (Premium)
HD Bronze (Premium)
Copper Penny (Premium)
Galvalume (Non-Painted)

Painted 5V-Crimp® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Hi-Reflective

Painted 5V-Crimp finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
