Sentry Slate
A reawakening of modern luxury.
Experience Unforgettable

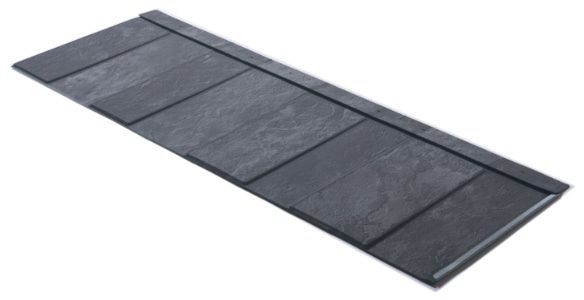

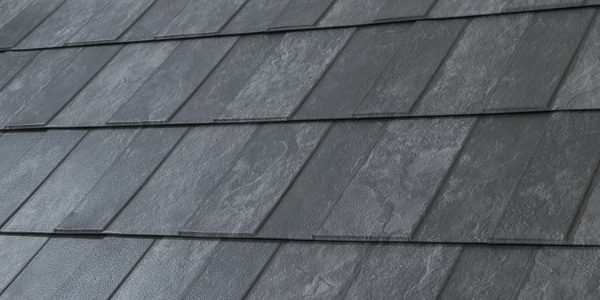

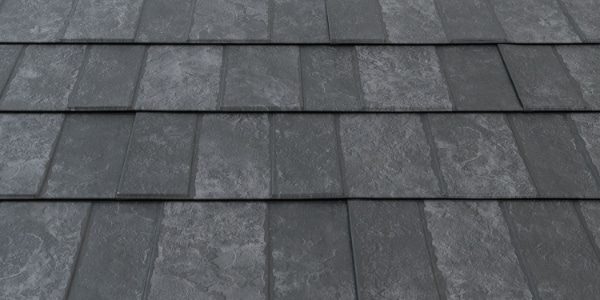

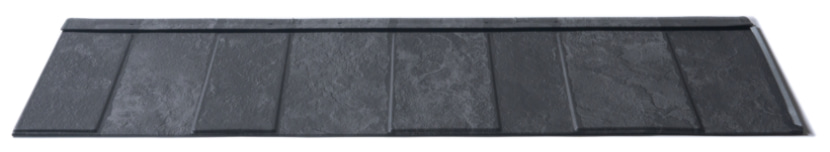

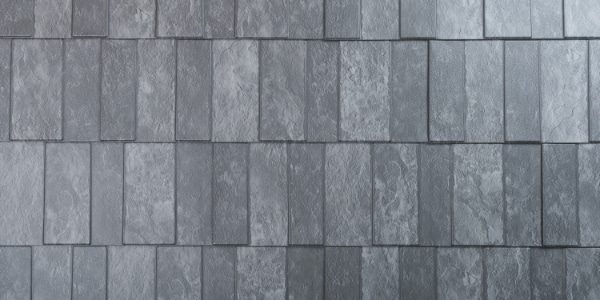

Sentry Slate combines high tech metal slate roof technology with a true-to-nature slate pattern and 3D print design. Sentry interlocks on all 4 sides for superior wind and storm protection.
Design & Size

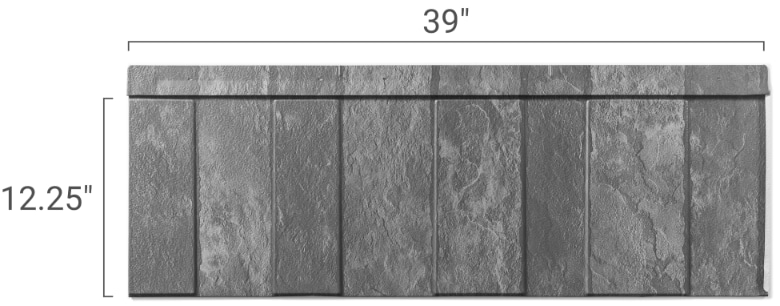

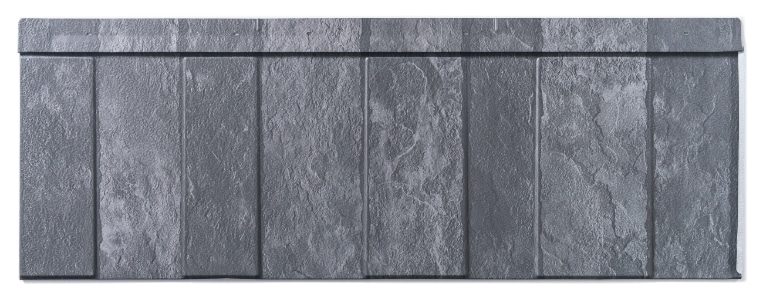

We provide Sentry Slate in 1/2 SQ boxes (50 square feet). Each box contains 15 shingles. Each shingle is 14.2″ high by 39.5″ wide and covers 12.25″ high x 39″ wide once installed.
Size
Actual: 14.2" high by 39.5" wide
Coverage: 12.25" high by 39" wide
Gauge & Weight
29 Gauge - 0.76 lb / Sq Ft
Warranty & Finish
Sentry Slate carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.
Finish & Warranty
Lifetime Limited
40 Years Transferable
Reflectivity
30-36%
Purpose & Use
A 4-way interlocking design and hidden fasteners make Sentry Slate a great choice for roofs as low as 3:12. As with most painted metal shingles, Sentry is designed for installation on solid deck applications.
Sentry Slate is most often chosen for residential applications but also functions at a high level for light commercial applications as well.
A high tensile steel core allows Sentry Slate to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).
Minimum Slope
3:12
Substrate
Solid Deck
Florida Approvals
Florida Building Code
Intent
Residential
Light Commercial

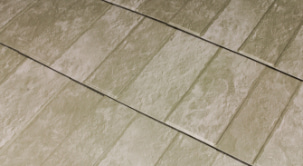

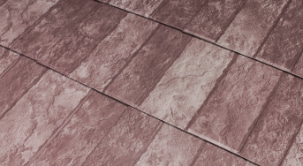

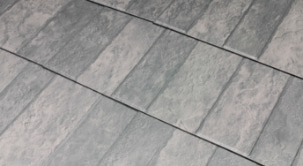

Colors

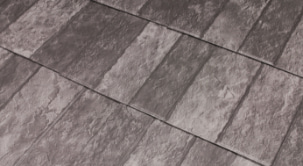

Slate Rock GraySentry Slate’s finishes meet Hi-Reflective requirements, reflecting 30-36% of the sun’s rays, but are not Hi-Reflective certified.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 17418.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Hi-Reflective
Sentry Slate’s finishes meet Hi-Reflective requirements, reflecting 30-36% of the sun’s rays, but are not Hi-Reflective certified.
Customer Reviews
Sam D. Newcastle, California
My boy took a few drone shots a couple days ago in the evening. Take a look at how the metal slate looking roofing turned out! I’ll get some better pictures when the sun is out and send them to you if you wish so you can show your customers how close it looks to real stone slate and still have all the advantages of metal! Thanks for all the help.
