North Ridge Slate
Rich appearance of mountain quarry slate.
Remarkable Engineering, Inspired by Nature

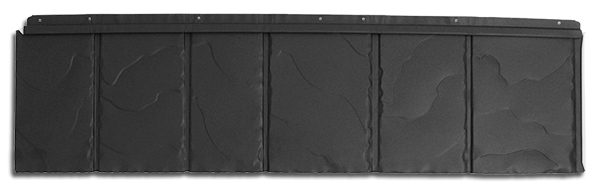

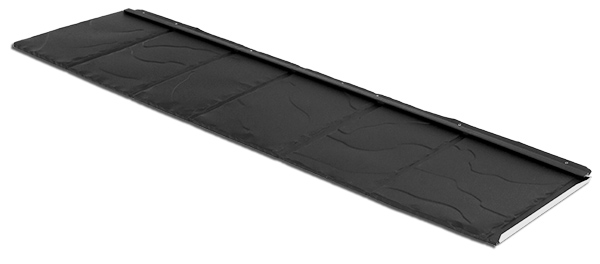

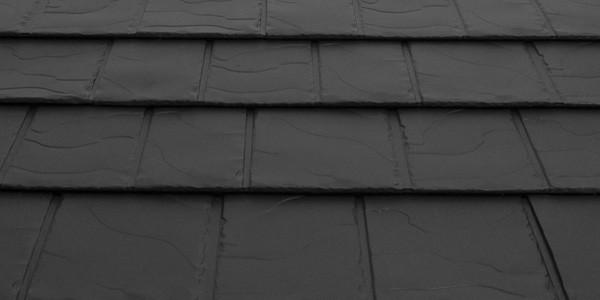

North Ridge Slate from True Nature offers an incredible slate rock shingle with the strength of 28-gauge steel. North Ridge interlocks on all 4 sides for superior longevity and strength. Smart engineered features including pre-drilled holes, water shedding channels, and integrated top-lock make North Ridge an excellent choice for your project.
Design & Size

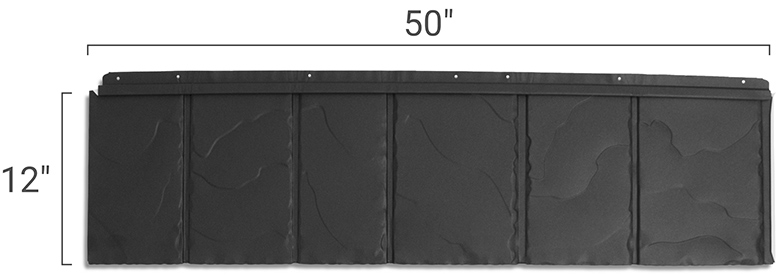

We provide North Ridge Slate in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 13.5625” high by 50.75” wide and covers 12” high x 50” wide once installed.
Size
Actual: 13.5625” high by 50.75” wide
Coverage: 12” high by 50” wide
Gauge & Weight
28 Gauge - 1.00 lb / Sq Ft
Warranty & Finish
North Ridge Slate carries a non-prorated lifetime limited warranty, 40 year paint warranty, and 30 year fade/chalk warranty. Finish options include Kynar 500® / Hylar 5000® PVDF or SMP Siliconized-Modified-Polyester baked-on enamel paint over primer and Galvalume (zinc-aluminum) coated steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.
Finish & Warranty
Lifetime Limited
50 Years Transferable
Reflectivity
6-29%
1 Color Hi-Reflective
Purpose & Use
A 4-way interlocking design and hidden fasteners make North Ridge Slate a great choice for roofs as low as 3:12. As with most painted metal shingles, True Nature is designed for installation on solid deck applications.
North Ridge Slate is most often chosen for residential applications but also functions at a high level for light commercial applications as well.
A high tensile steel core allows North Ridge to easily handle the high winds in Florida.
Minimum Slope
3:12
Substrate
Solid Deck
Intent
Residential
Light Commercial
Colors

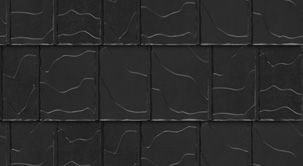

Ebony (Signature Matte)

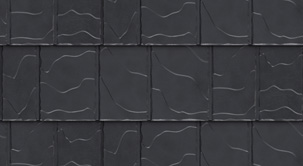

Shadow Deep Gray (Signature Matte)
Burnished Slate (Signature Matte)
Midnight Storm (Expressence)

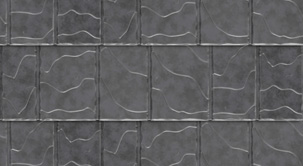

Mica Gray (Expressence)Burnished Slate meets Hi-Reflective requirements, reflecting 29% of the sun’s rays, while the other colors still offer impressive reflectivity from 6-14%. The air gap created by the thickness of the slate also adds an insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 1897
215 MPH Wind Uplift
215 MPH Wind Uplift
Testing: Florida Approvals
FL# 40929.1
Over 7/16" min. thick OSB or 15/32-inch, 32/16 span rated, 4-ply, CDX plywood
Over 7/16" min. thick OSB or 15/32-inch, 32/16 span rated, 4-ply, CDX plywood
Hi-Reflective
Burnished Slate is Hi-Reflective certified, reflecting 29% of the sun’s rays.
