Cottage Shingle
A permanent take on a classic look.
Cozy as a Fireplace
Cottage Shingle capture the rustic look of cottage style wood shingles, each curve and angle truer than the next. Exceptional stone granule blends combine with a 26 gauge Galvalume steel core to deliver hurricane resistance and long term protection for your roof.
Design & Size

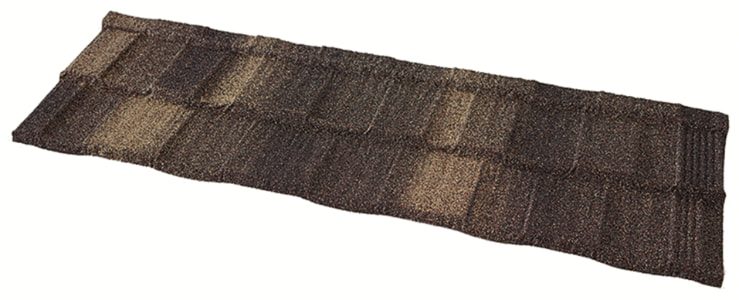

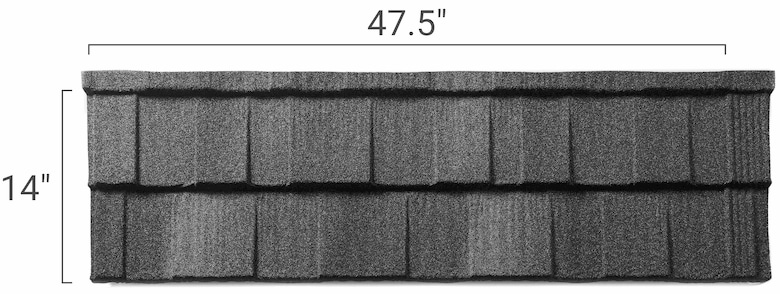

We provide Cottage Shingle by the roofing square (100 square feet). Each shingle is 16″ high by 51.625″ wide and covers 14″ high x 47.5″ wide once installed. To cover one square requires 22 Cottage panels.
Size
Actual: 16" high by 51" wide
Coverage: 14" high by 47.5" wide
Gauge & Weight
26 Gauge – 1.5 lb / Sq Ft
Warranty & Finish
Cottage Shingle carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.
Finish & Warranty
50 Years Limited
Fully Transferable
Reflectivity
4-11%
Vented Airspace Provides Insulation Layer
Purpose & Use
Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Cottage Shingle a great choice for roofs as low as 3:12. Cottage Shingle is designed for installation on solid deck applications.
You’ll find Cottage Shingle most often on residential applications, but it also functions well for light commercial applications as well.
Cottage is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.
Minimum Slope
3:12
Substrate
Solid Deck
Florida Approvals
Florida Building Code
Miami-Dade Hurricane Zone
Intent
Residential
Light Commercial
Colors

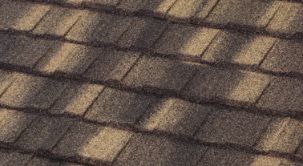

Timberwood-HD

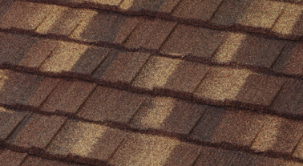

Barclay-HD

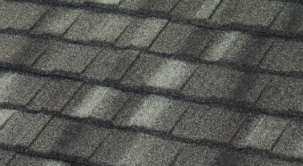

Ironwood-HD

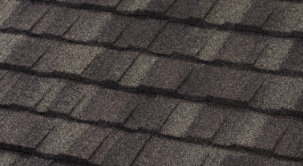

Charcoal-HDCottage Shingle® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
See report for requirements
Hi-Reflective
Cottage Shingle® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
