ArrowLine Shake
Beautiful, Inspiring, Permanent
Timeless Beauty
ArrowLine Shake provides the charm and warmth of wood in a strong, maintenance free steel material. ArrowLine interlocks on all 4 sides for superior wind and storm protection. Don’t settle for a 10 to 15-year flammable wood roof – choose a lifetime of beauty.
Design & Size

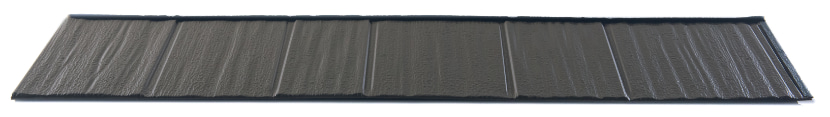

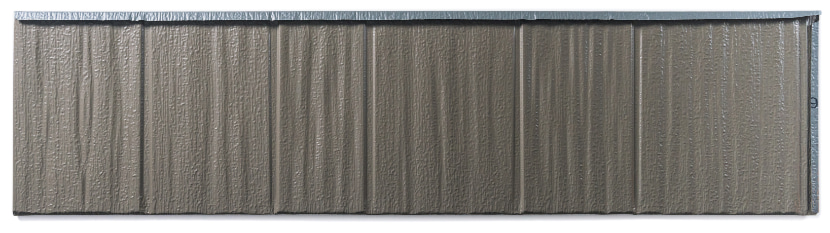

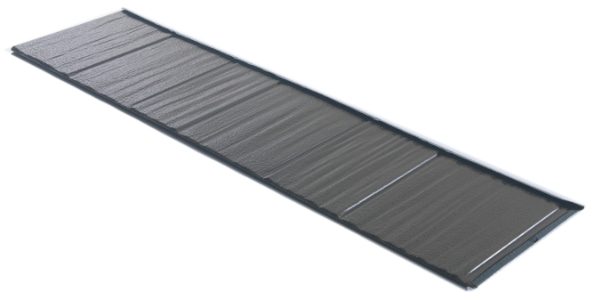

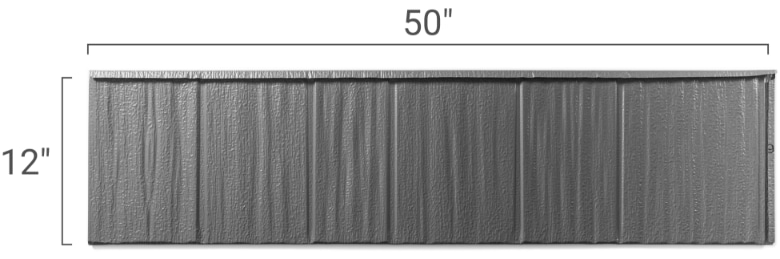

We provide ArrowLine Shake in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 12.8″ high by 50.7″ wide and covers 12″ high x 50″ wide once installed.
Size
Actual: 12.8" high by 50.7" wide
Coverage: 12" high by 50" wide
Gauge & Weight
30 Gauge - 0.76 lb / Sq Ft
28 Gauge - 0.90 lb / Sq Ft
Warranty & Finish
ArrowLine Shake carries a non-prorated lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.
Finish & Warranty
Lifetime Limited
50 Years Transferable
Reflectivity
25-35%
Hi-Reflective
Purpose & Use

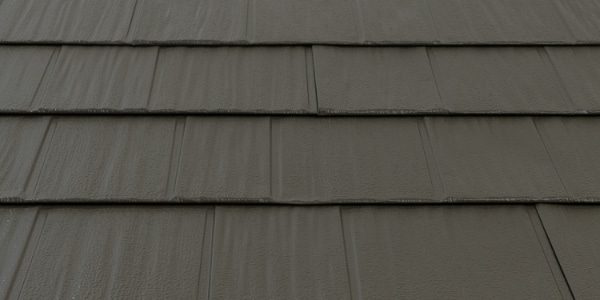

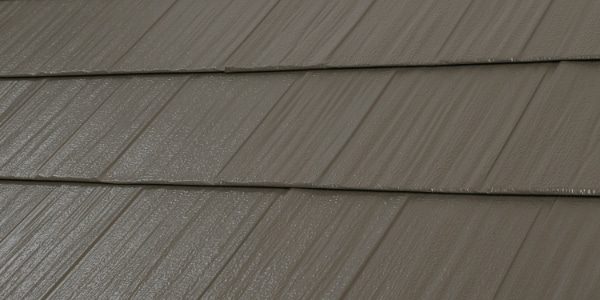

A 4-way interlocking design and hidden fasteners make ArrowLine Shake a great choice for roofs as low as 4:12. As with most painted metal shingles, ArrowLine is designed for installation on solid deck applications.
ArrowLine Shake is most often chosen for residential applications but also functions at a high level for light commercial applications as well.
The standard 30 gauge thickness is not Florida Building Code approved though it is tested for up to 160 MPH winds. An available special order 28 gauge thickness allows ArrowLine Shake to meet the Florida Building Code requirements. (not approved for HVHZ / High Velocity Hurricane Zones).
Minimum Slope
4:12
Substrate
Solid Deck
Florida Approvals
Florida Building Code (Special Order 28 gauge only)
Intent
Residential
Light Commercial
Colors

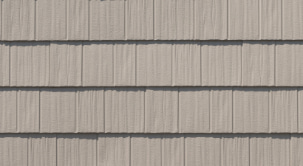

Sandtone

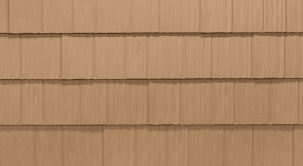

Cedar

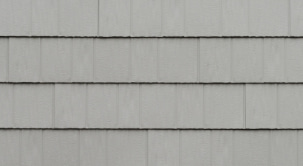

Pewter

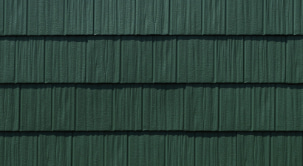

Hartford Green

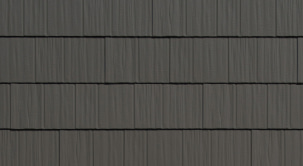

Charcoal Gray

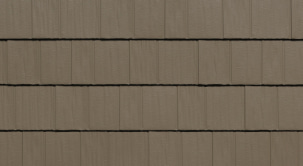

T-Tone

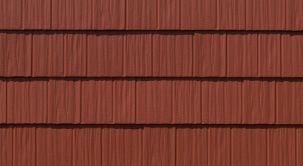

Classic Red

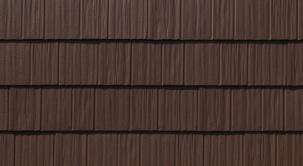

Royal Brown
Copper

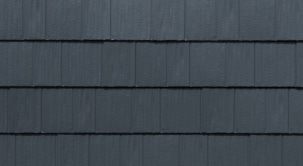

Classic Blue

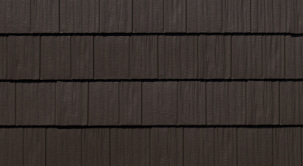

Statuary Bronze
Zn90 (28ga, Premium)

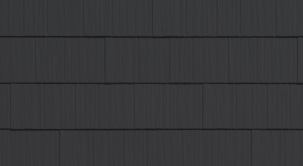

Stone (28ga, Special Order)ArrowLine Shake® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
Standard thickness is 30 gauge though 28 gauge is available by special order.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 4077.1
See report for requirements
See report for requirements
Hi-Reflective
ArrowLine Shake® finishes are Hi-Reflective certified, reflecting 25-35% of the sun’s rays.
